Faraday Electromagnetic Principle——No moving parts — zero pressure drop, zero wear

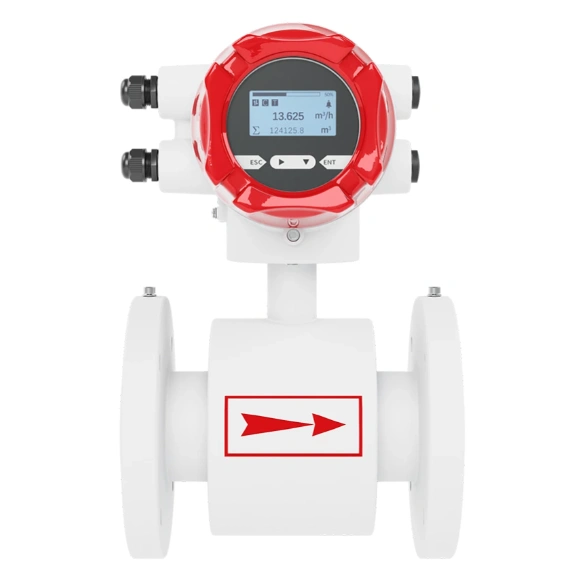

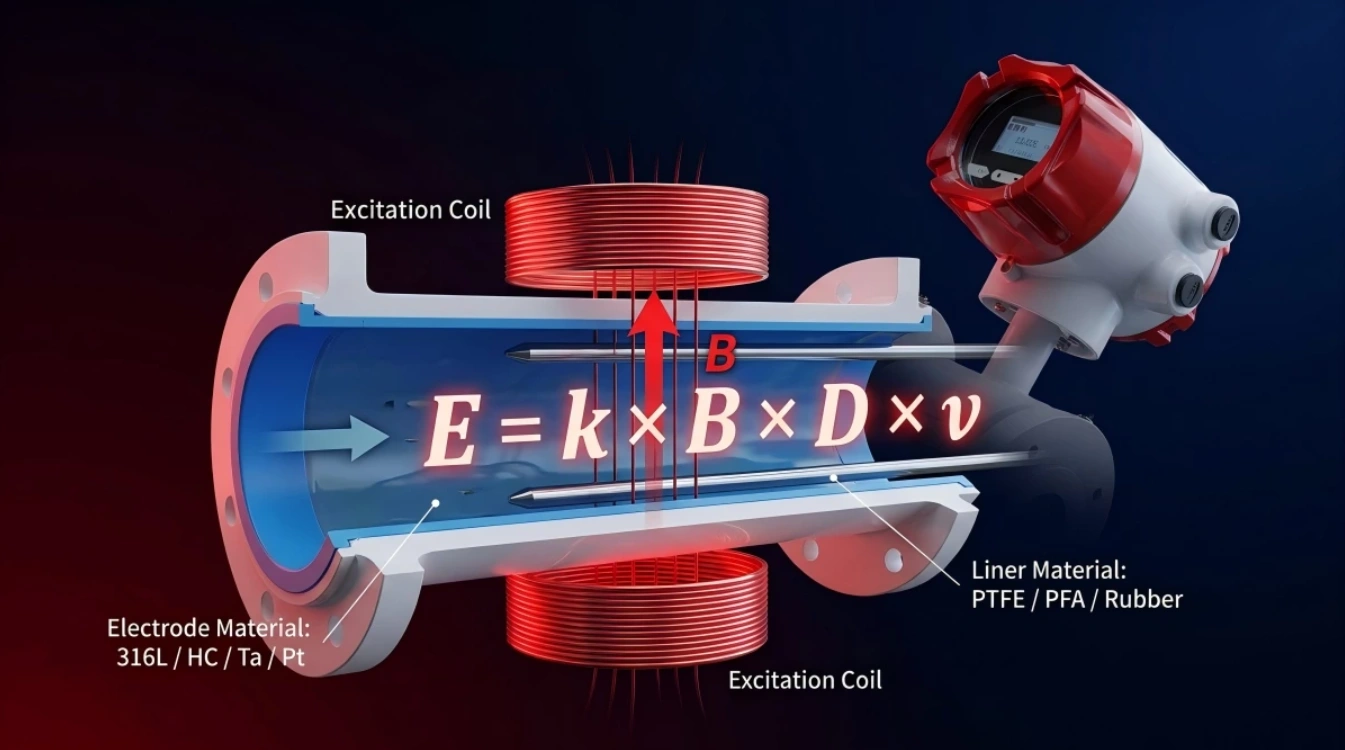

The A100 measures flow using Faraday’s law (E = K × B × V × D). Because no mechanical element enters the flow path, the meter causes no pressure loss and requires virtually no maintenance.
Wide Diameter Range——DN10 to DN1000 — one platform, every pipe size
Available in 24 standard pipe sizes covering flow rates from 0.14 m³/h (DN10) up to 14,100 m³/h (DN1000). Custom sizes and flanges available on request.
High Accuracy & Repeatability——±0.5% accuracy; ±0.16% repeatability
Reference accuracy ±0.5% of measured value; ±0.3% available for selected sizes. Repeatability ±0.16%. Valid for flow velocities 0.5–5 m/s.
Versatile Lining & Electrode Materials——Match any corrosive medium with the right liner
Lining options: PTFE (–10 °C to 120 °C), CR rubber, PU rubber, F46. Electrode materials: 316L SS, Hastelloy B/C, titanium, tantalum, platinum-iridium — selected by corrosion resistance chart.
Multi-Protocol Communication——4–20 mA, pulse, RS485, HART — all in one converter
Standard: 4–20 mA (0–750 Ω load) + passive/active pulse (Fmax ≤5000 cps). Optional: HART protocol, RS485/MODBUS-RTU. Relay output (2×SPST, 250 VAC, 3 A) on remote type.
Self-Diagnostics & Empty-Pipe Detection——Built-in diagnostics minimise false alarms and downtime
On-board self-diagnosis: ADC error, excitation current error, signal saturation, empty-pipe alarm, min/max flow alarms, reverse-flow detection. Error codes display in real time on the LCD converter.
