MS501

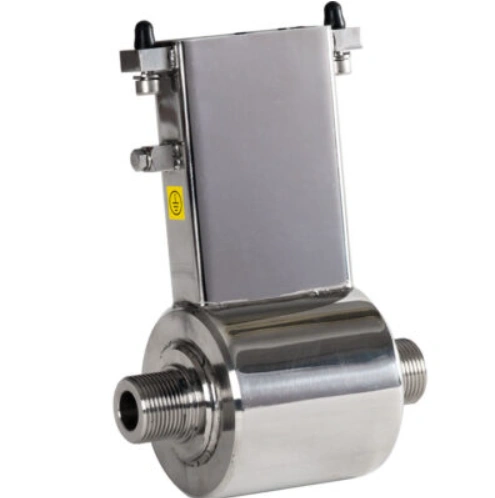

The ISOMAG MS501 microflow

sensor for flow meters is the smallest instrument in the series, with a wide range of applicability thanks to the variety of its attachments.

Electromagnetic Flow Meter ISOMAG MS501 เซ็นเซอร์ Microflow สำหรับวัดอัตราการไหลของน้ำ สารเคมี และของเหลวนำไฟฟ้า แม่นยำสูง ไม่มีชิ้นส่วนเคลื่อนที่ ลดการบำรุงรักษา รองรับแรงดันสูงและการใช้งานหลากหลาย

Download Documents

  • Body material: AISI304/316 stainless steel
  • Nominal diameters: from DN 3 to DN 20
  • Connections: Threaded / DIN11851 / Tri-clamp / Tri-clover / SMS / Flanges UNI / ANSI / JIS
  • Flow rate: 0..12.500 l / h
  • Nominal pressure: from PN 16 to PN 40
  • Coatings: Polypropylene / PTFE
  • Body: AISI304 (MS501) / Polypropylene
  • Electrodes: AISI316 / Hastelloy C276 / Platinum / Tantallium / Titanium – Pressure: Up to PN40
  • Fluid temperature: -20 ÷ 130 ° C

ต้องการใบเสนอราคา

Line add : @intech2000

Email : intech@intech2000.com

Phone : 02-440-1853

  • Body material: AISI304/316 stainless steel
  • Nominal diameters: from DN 3 to DN 20
  • Connections: Threaded / DIN11851 / Tri-clamp / Tri-clover / SMS / Flanges UNI / ANSI / JIS
  • Flow rate: 0..12.500 l / h
  • Nominal pressure: from PN 16 to PN 40
  • Coatings: Polypropylene / PTFE
  • Body: AISI304 (MS501) / Polypropylene
  • Electrodes: AISI316 / Hastelloy C276 / Platinum / Tantallium / Titanium – Pressure: Up to PN40
  • Fluid temperature: -20 ÷ 130 ° C

ต้องการใบเสนอราคา

Line add : @intech2000

Email : intech@intech2000.com

Phone : 02-440-1853
