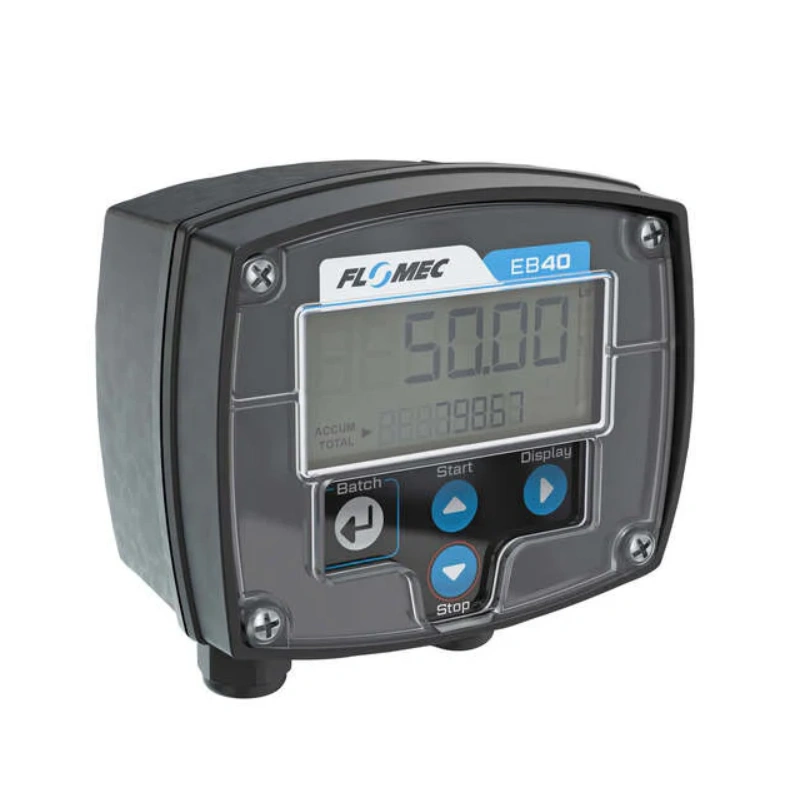

EB40

• Display: Dual Line LCD (Top: 6 characters x 17 mm / Bottom: 8 characters x 7 mm)
• Housing: Glass Reinforced Nylon (IP66/67)
• Entries: 3x 16mm drilled holes
• Input: Pulse/frequency
• Output: NPN (open collector, sinking), 30V (DC) / 5A max
• External DC Power: Regualted 12 – 30 V (DC) (Typical Draw: 100mA across range)
• Backup Battery Power: AA (14505) 3.6V Lithium Thionyl Chloride
• Operating Temp: -22°F to 176°F (-30°C to 80°C)

• Store up to 10 frequently used recipes for quick and easy recall
• Non-linear correction for accurate measurements across a wide flow range
• Weather-resistant and durable IP66/67 – NEMA4X enclosure
• Prevent costly overruns with built-in limits and overrun correction
• Retained settings after power loss
• Enhance safety with an optional interlock that prevents operation without a receiving vessel
• Built-in diagnostics simplify installation and troubleshooting
• FLOMEC CDS software compatible for simple and intuitive programming

• Sauce Manufacturing: Ensure consistent flavor and texture in sauces, dressings, and condiments by accurately controlling the addition of liquids.
• Microbreweries: Add exact strike water volumes every time for consistent
• Wine and Spirits Production: Accurately measure and blend different liquids during the winemaking or distilling process.
• Chemical Mixing: Accurately measure, blend and dilute chemicals for the production of cleaning agents, fertilizers, and other chemical products.
• Cosmetic Production: Control the precise addition of liquids in the manufacturing of lotions, creams, and perfumes.
• Water Treatment: Control the addition of chemicals for water purification and treatment processes.
• Fuel Dispensing: Accurately measure and dispense fuels at fuel depots.
• Agriculture: Control the dosage and application of liquid herbicides and pesticides in agricultural settings.
• Aquaculture: Accurately dispense medications and nutrients in fish farms and aquaculture facilities.
• Wastewater Treatment: Control the addition of chemicals in wastewater treatment processes including PAC dilution, reducing waste and increasing effectivity.
• Building Industry: Dilution and addition of cement additives, and dedusting agents.

• Instrument Type: Batch Controller
• Mounting Type: Meter and Stem Mount, Wall, Pipe or Panel mount
• Operating Temperature Range: -30°C – 80°C
• Engineering Units: Litres, Cubic Metres, US Gallons, Imperial Gallons, Millilitres (Cubic Centimetres), Quarts, Fluid Ounces, Cubic Feet, Barrels, Kilograms, Pounds, or Custom.
• Display & Totals: Large dual line LCD with 6 characters 17mm high on top line, 8 characters 7mm high on bottom line. Backlit (external power)
• Control Option: Single Stage
• Input Types & Frequency: Reed Switch – (120Hz), NPN (hall effect sensor) – (2kHz), Variable Reluctance Coils (Turbine Flowmeters) – (2kHz), Weigand Sensors (voltage pulse signals) – (2kHz), Coil (15mV pk-pk min.)
• Control Outputs: NPN (open collector, sinking) output, 30Vdc / 1A maximum
• Enclosure: Glass reinforced Nylon (PA6) with a Polycarbonate lens, Santoprene gasket, polyester decal. Enclosure provides an IP rating of IP65 Optional powder coated Aluminium enclosure
• Power Requirements: Regulated 12V ~ 30V DC
