EB11
,

EB11

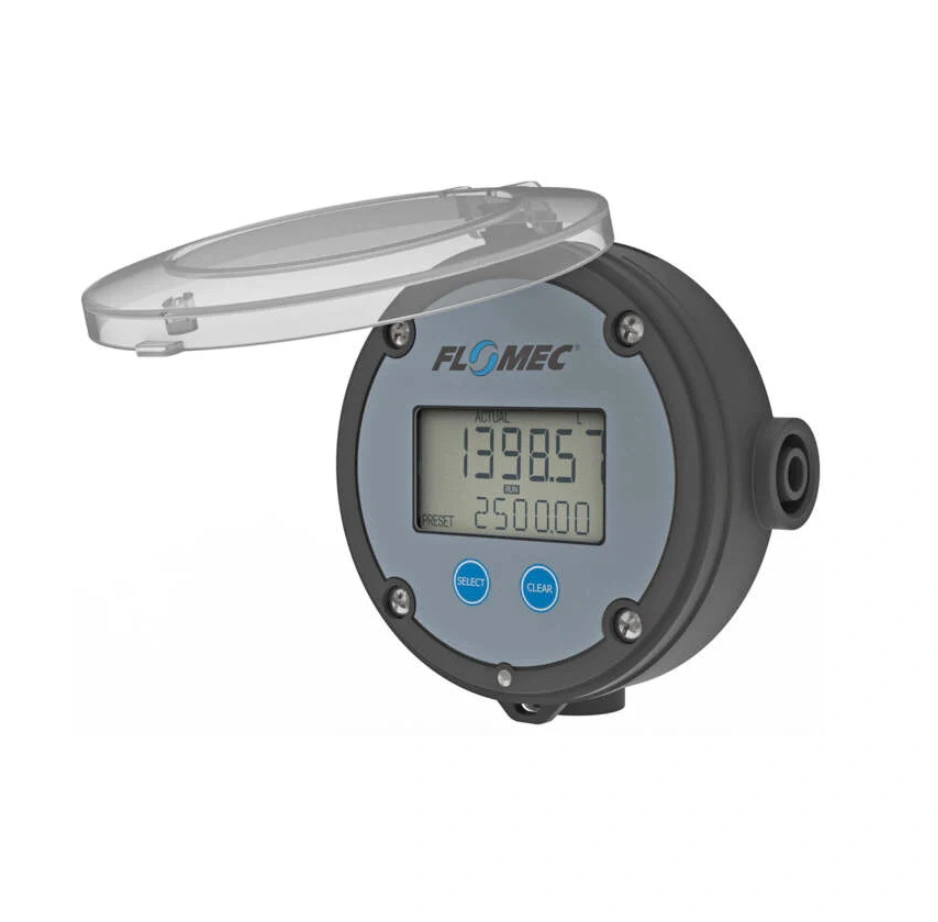

EB11 Dual Stage Batch Controller

The FLOMEC EB11 “EasyBatch” is a dual-stage batch controller designed to create an efficient and accurate dispensing experience.

Mountable either directly onto a FLOMEC® flow meter or remotely and compatible with multiple types of industry signals, the EB11 allows the user to control the volume of fluid dispensed into their process, while the large 7-digit display with backlight enables easy reading of the batch status in either light or dark conditions. Housed in an IP66/67-NEMA4X-rated glass-reinforced nylon enclosure for increased impact and corrosion resistance, particularly in washdown environments.

Categories: , Brand:

Download Documents

📄 Datasheet📘 Manual
  • 12 mm 7-digit batch total and 7 mm 7-digit batch preset
  • Please contact us with exact application before ordering to determine if PN RT406D0MM is required for local meter mount or PN RT406D0FM is required for remote field mount.
  • Additional parts may be required.
  • Inquire for assembly charges.
  • 2 digital NPN outputs with a current rating of up to 300 mA for direct control of solenoid valves or to connect to relays to allow for the control of large valves and pumps.
  • Easy to use 2 button controller
  • Weather-resistant and durable IP66/67 – NEMA4X enclosure
  • Easy-to-read backlit 7-digit display
  • Retained settings after power loss

–

  • Instrument Type: Batch Controller
  • Mounting Type: Meter and Stem Mount, Wall, Pipe or Panel mount
  • Operating Temperature Range: -10°C – 60°C
