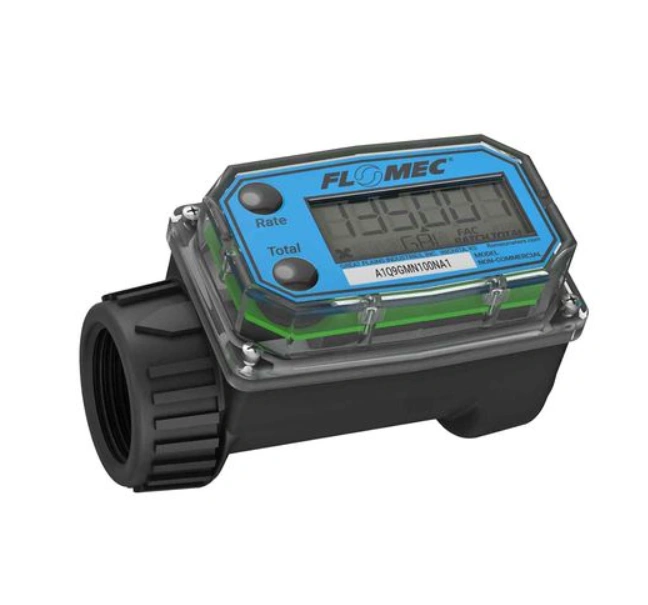

A1Q9GM-N025NA1

• Meter Body Size: 1″
• Body Type: Low Flow
• Local/Remote Display: Local
• Display Type: Digital LCD
• Factory Calibrated For: Water like fluids
• Flow Meter Type: A1 Series – COMMERICAL GRADE METER
• Std Calibration Reports Included: Yes
• Warranty Period: 1 Year
• Competitor Model Numbers: 03N30GM
• Product Type: Rate & Totals
• Benefits & Features: 2-Year Battery Powered; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Choice of Gallons or Liters; Custom Programmable Display (including UOM)

–

• Applications (always check Chemical Compatibility Guide): Water, Non-Aggressive Chemicals
• Not Suitable For Applications: DI Water
• Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line must be full (no air) for proper accuracy
• Minimum Straight Pipe Dia.s: 20″ Upstream / 5″ Downstream
• Desired Straight Pipe Dia.s: 40″ Upstream / 10″ Downstream

• Max Pressure Drop (at Max Flow in test conditions): 2 PSI
• Repeatability (based on test conditions): ± 1.0%
• Recommended Strainer Size: 120 Mesh (125 Microns)
• Max. Particle Size: .005″ / .127 mm
• Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt’l]
• Accuracy (% of Reading) Factory Calibrated with Computer: Up to ± 5%<br>[Accuracy can vary up to ± 5% depending on installation and fluid type. Field Calibration is recommended for best accuracy.]
• Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
