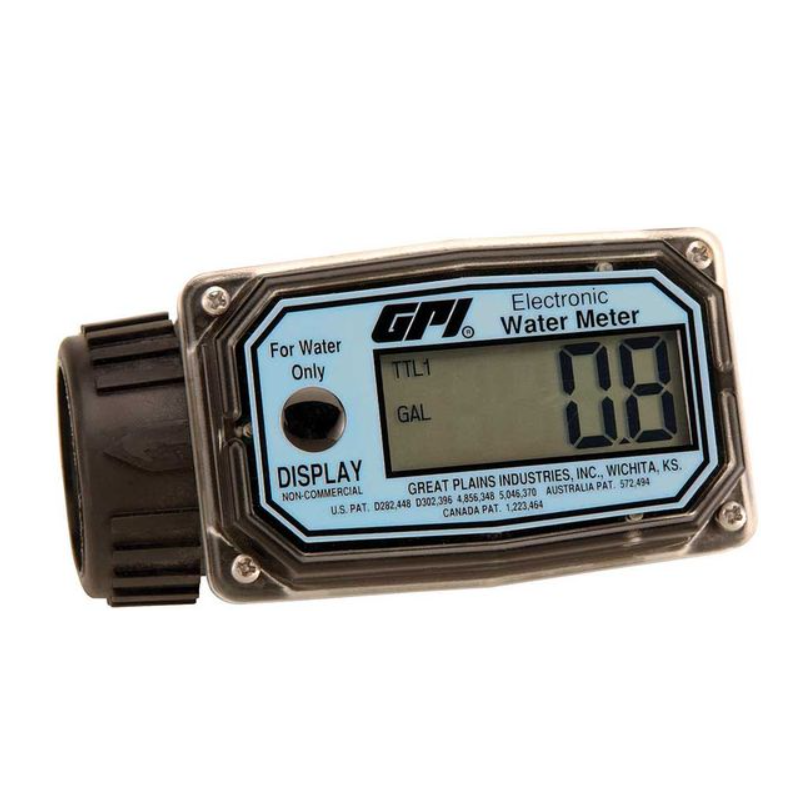

01N-31GM (1″NPT)

• Meter Body Size: 1″
• Local/Remote Display: Local
• Display Type: Digital LCD
• Factory Calibrated For: Water like fluids
• Flow Meter Type: 01N Series – WATER METER
• Std Calibration Reports Included: No
• Warranty Period: 1 Year
• Product Type: Totalizer Only (no rate of flow)
• Benefits & Features: Economical, Light Weight, Battery Powered, 4 Digit Display, Batch & Cumulative Totals, Auto On/Off, Factory Calibrated for Water, Choice of Gallons or Liters

–

• Applications (always check Chemical Compatibility Guide): Water
• Not Suitable For Applications: Residential Water Monitoring, Chemicals, Fuels, DI Water
• Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Does not indicate rate of flow, Not always suited for residential water monitoring, Line must be full (no air) for proper accuracy
• Piping Notes: Hand tighten connections

• Max Pressure Drop (at Max Flow in test conditions): 1.5 PSI
• Accuracy (% of Reading) Factory Calibrated with Computer: ± 5%
• Repeatability (based on test conditions): ± 0.5%
• Recommended Strainer Size: ~35 Mesh (500 Microns)
