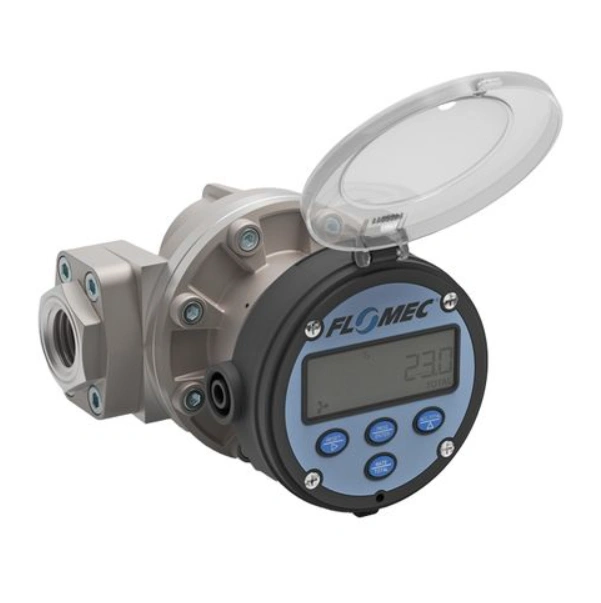

OM025S001-316LSS (255/990PSI)

• Max Pressure Drop (at Max Flow in test conditions): Contact us
• Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5% (±0.2% Opt’l) @ 3cp
• Repeatability (based on test conditions): ± 0.03%
• Maximum Viscosity: 1,000 cps
• Recommended Strainer Size: 100 Mesh (150 Microns)
• Max. Particle Size: .006″ / .149 mm
• Operating Temp Without Local Computer or With Remote Computer: 5 to 250°F (-15 to 120°C) [Opt’l]

–

• Applications (always check Chemical Compatibility Guide): Metering clean fluids such as water based liquids for Chemical, Cosmetic, Food, and Pharmaceutical Industries
• Not Suitable For Applications: Dirty liquids
• Minimum Straight Pipe Dia.s: None
• Desired Straight Pipe Dia.s: None
• Application Notes: The meter may be mounted horizontally or vertically but must be mounted, so the rotor shafts are in a horizontal plane (see manual), For viscous liquids, the maximum allowable flow may need to be reduced to ensure the pressure drop across the meter does NOT exceed 15 PSI, Viscosities <3cps, min. flow range is 10% of the maximum flow range, Line must be full (no air) for proper accuracy

• Max Pressure Drop (at Max Flow in test conditions): Contact us
• Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5% (±0.2% Opt’l) @ 3cp
• Repeatability (based on test conditions): ± 0.03%
• Maximum Viscosity: 1,000 cps
• Recommended Strainer Size: 100 Mesh (150 Microns)
• Max. Particle Size: .006″ / .149 mm
• Operating Temp Without Local Computer or With Remote Computer: 5 to 250°F (-15 to 120°C) [Opt’l]
