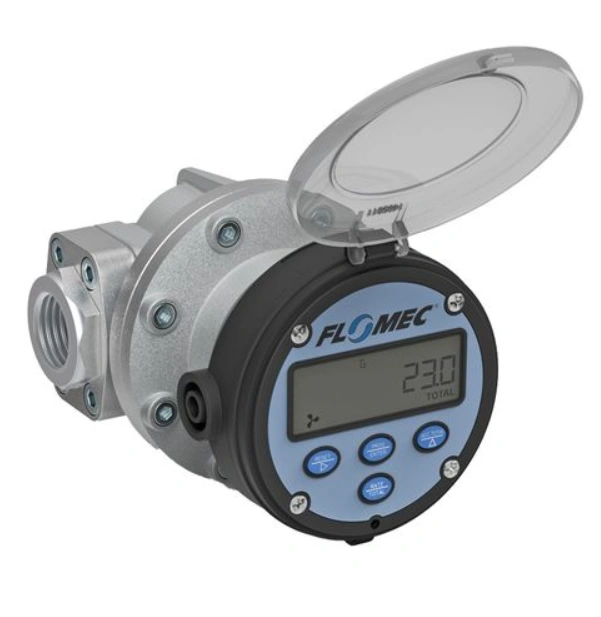

OM025A001-Aluminum (175/990PSI)

• Meter Body Size: 1″
• Local/Remote Display: Local
• Display Type: Digital LCD (GRN Housing)
• Flow Meter Type: OM Series – OVAL GEAR
• Std Calibration Reports Included: Yes
• Warranty Period: 1 Year
• Product Type: Rate, Totals & 4-20mA Output
• Benefits & Features: Excellent for applications with fluctuating or multiple viscosities – No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; Bi-directional; PPS Rotors are immune to galling (adhesive wear); PPS Rotors produce less noise than metal rotors; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Choice of Gallons or Liters; Custom Programmable Display (including UOM); Back-lighted Display when powered externally

–

• Applications (always check Chemical Compatibility Guide): Metering clean fluids such as Oils, Grease, Fuels, Fuel Oils, Lubricating Liquids
• Not Suitable For Applications: Water, dirty liquids
• Minimum Straight Pipe Dia.s: None
• Desired Straight Pipe Dia.s: None
• Application Notes: The meter may be mounted horizontally or vertically but must be mounted, so the rotor shafts are in a horizontal plane (see manual), For viscous liquids, the maximum allowable flow may need to be reduced to ensure the pressure drop across the meter does NOT exceed 15 PSI, Viscosities <3cps, min. flow range is 10% of the maximum flow range, Line must be full (no air) for proper accuracy

• Max Pressure Drop (at Max Flow in test conditions): Contact us
• Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5% (±0.2% Opt’l) @ 3cp
• Repeatability (based on test conditions): ± 0.03%
• Maximum Viscosity: 1,000 cps
• Recommended Strainer Size: 100 Mesh (150 Microns)
• Max. Particle Size: .006″ / .149 mm
• Operating Temp Without Local Computer or With Remote Computer: 5 to 250°F (-15 to 120°C) [Opt’l]
