IFX-B
INDUSTRIAL FLOW METER

IFX-B

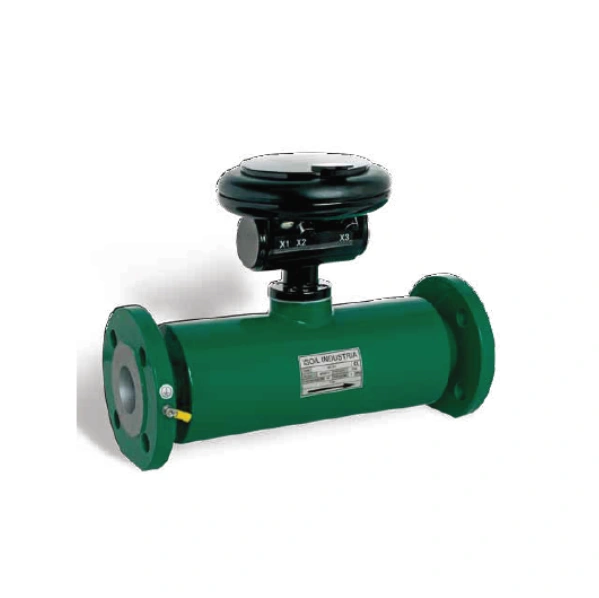

Ultrasonic flow meter IFX-B ISOFLUX

The ISOFLUX IFX-B ultrasonic flow meter is suitable for applications on clean water and low conductivity liquids.

It belongs to a complete range of flow meters ISOFLUX, intended for flow measurements of conductive, non-conductive liquids, the range includes the following versions:

  • IFX-A – AC mains powered meters
  • IFX-B – Battery powered meters
  • IFX-R – MID certified battery water meters

Ultrasonic flow meters operate on transit time principle by measuring the time difference of ultrasonic waves traveling in and against the direction of the fluid flow.

สอบถาม / ขอใบเสนอราคาติดต่อฝ่ายขาย
หมวดหมู่: , ,
แบรนด์: ISOIL

Overview

The ultrasonic flow meter IFX-B, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958,

IFX-B Ultrasonic Flow Meter เครื่องวัดอัตราการไหลแบบ Ultrasonic ใช้แบตเตอรี่ เหมาะสำหรับวัดน้ำสะอาดและของเหลวค่าการนำไฟฟ้าต่ำในงานอุตสาหกรรม

Specifications

  • Operating principle based on the measurement of transit time.
  • Available with single or double beam.
  • Flanged connections according to DIN or ANSI standards.
  • Available in diameters from DN 32 to DN 300.
  • Measuring tube in stainless steel.
  • Carbon steel flanges and outer tube.
  • IP 68 waterproof sensor.
  • Compact converter with display.
  • Powered by lithium-ion batteries, duration up to 8 years.
  • Pulse output or 4-20 mA (passive).
  • High precision and reliability thanks to the absence of moving parts.

Downloads

BrochureDownload ↗

สนใจสินค้า หรือขอใบเสนอราคา

แจ้งรุ่นสินค้าและรายละเอียดการใช้งาน เพื่อให้ทีมงานช่วยเลือก Flow Meter ที่เหมาะสม

LINE: @INTECH2000Email: INTECH@INTECH2000.COMโทร 02-440-1853
, ,
