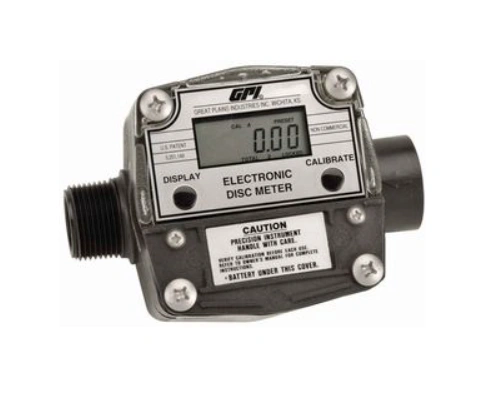

INDUSTRIAL FLOW METER

FM300-2

1″ FNPT-In MNPT-Out PBT Polyester

Rate & Totals FM-300 Series – CHEMICAL METER

Main Specifications

Connection Size: 1″

Connection Type: FNPT-In MNPT-Out

Flow Range: 7 – 75 LPM

Pressure Rating: 50 PSI (3.4 Bar)

Operating Temp With Local Computer: 15°F to 130°F (-9°C to 54°C)

หมวดหมู่: Flow Meter, FM Chemical Flow Meter, Positive Displacement

แบรนด์: FLOMEC, GPI

Overview

Meter Body Size: 1″
Body Type: Reads in Liters
Local/Remote Display: Local
Display Type: Digital LCD
Flow Meter Type: FM-300 Series – CHEMICAL METER
Std Calibration Reports Included: No
Warranty Period: 2 Year
Product Type: Rate & Totals
Factory Calibrated For: Thin & Medium Viscosity medias
Benefits & Features: Small & Sturdy, Mount On The End of In-Line Hose or Pipe, Battery Powered, 6 Digit Display, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated for thin and medium fluids, Field Calibratable

Applications (always check Chemical Compatibility Guide): Agricultural, Water, Herbicides, Pesticides, Fertilizers, Most Industrial Fluids
Not Suitable For Applications: Gasoline, Diesel, Flammable Liquids
Application Notes: Unidirectional, Also has 303SS wetted part, Line must be full (no air) for proper accuracy
Piping Notes: Hand tighten and connect to plastic fittings only

Applications (always check Chemical Compatibility Guide): Agricultural, Water, Herbicides, Pesticides, Fertilizers, Most Industrial Fluids
Not Suitable For Applications: Gasoline, Diesel, Flammable Liquids
Application Notes: Unidirectional, Also has 303SS wetted part, Line must be full (no air) for proper accuracy
Piping Notes: Hand tighten and connect to plastic fittings only
