INDUSTRIAL FLOW METER

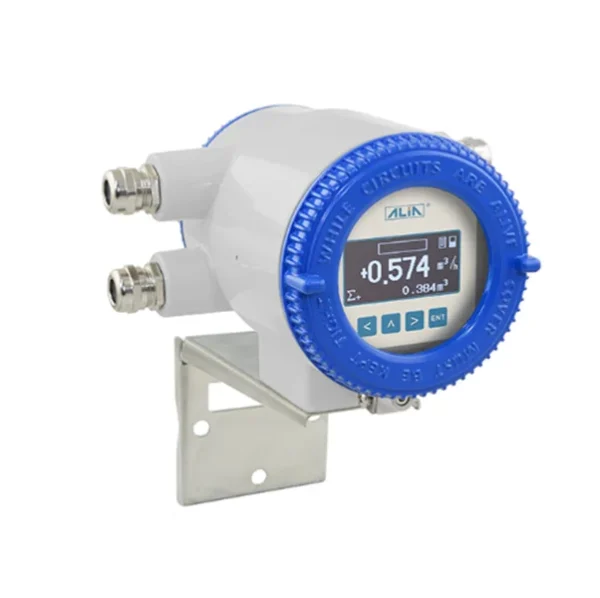

AMC3200DF

The AMC3200DF Series converter features dual frequency excitation. The reduced noise and improved signal to noise ratio make it more ideal for slurry measurement in various industries such as papermaking and chemistry. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting. It is equipped with Bluetooth, HART and MODBUS communication functions.

สอบถาม / ขอใบเสนอราคา ติดต่อฝ่ายขาย

หมวดหมู่: Electromagnetic Flow Meter, Flow Meter, Flow Sensor

แบรนด์: ALIA

Features

Dual Frequency Excitation Method
Three-line OLED display Flow Rate / Totalizer
Accuracy of +/-0.4% value of reading
Bi-directional flow measurement, current and pulse output
Explosion Proof, Ex d ia [ia] q llC T6
Bluetooth / MODBUS / HART communication
Converter can be rotated in four directions for easy installation

Specifications

Excitation	:	Dual Frequency Excitation
Display	:	3 Lines OLED
Line 1	:	Empty pipe symbol / Alarm / Batch control symbol
	:	Percentage progress bar / Message / Clr tot
Line 2	:	11 Digit flowrate / velocity / % / mA / Hz / Tot
Line 3	:	9 Digit totalizer for forward flow
	:	9 Digit totalizer for reverse flow
	:	9 Digit totalizer for difference
	:	11 Digit flowrate
Totalizer Unit	:	m³, L, mL, gal, Igal, Mgal, ft³, bbl,
		a-ft, kg, g, lb, t, Ston, Lton
Time Unit	:	sec, min, hour, day
Measuring Range	:	Min. 0-0.15 m/s , Max. 0-15 m/s
Accuracy	:	+/-0.4% of reading (Velocity≥1.0 m/s)
	:	+/-0.002 m/s (Velocity: 0.3…1.0 m/s)
Repeatability	:	+/-0.2% of reading
Current Output	:	4-20 mA (Isolated)
Load	:	Max. 500 Ω
Pulse Output	:	Open collector
Rating	:	3-30 VDC, 50 mA Max.
Pulse Rate	:	1)Scaled pulse (mL/Pulse, L/Pulse, Other)
	:	2)Frequency: 0-5000 Hz
Pulse Width	:	50% of band width
Alarm	:	High / Low with open collector output
Rating	:	3-30 VDC, 50 mA Max.
Communication	:	Bluetooth (Android) Standard
	:	RS485 (MODBUS Protocol) Standard
	:	HART signal (Compatible) Optional
