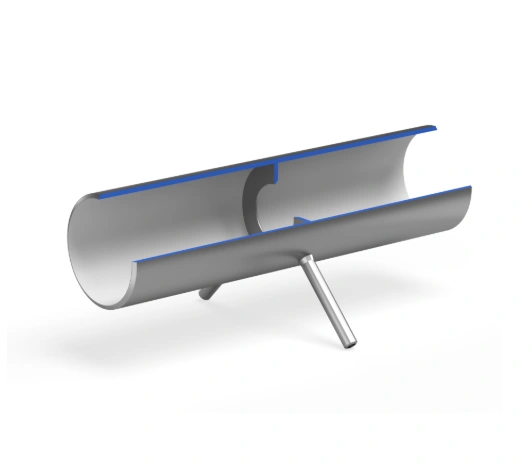

EMCO Orifice Plate Series MES with Single Pressure Tapping in All Welded Construction
The EMCO Orifice Plate is used as a primary element in flow measurement of liquid, gas and steam applications based on the differential pressure principle. According to this working principle, the orifice plate creates a flow restriction in the pipeline to allow measurement of the resulting pressure drop and flow rate. Our orifice plates have been tested and tried for over 50 years and measure up to the highest industry and compliance standards.

The Orifice Plate Series MES is constructed with a single pressure tapping in all welded construction

สอบถาม / ขอใบเสนอราคา ติดต่อฝ่ายขาย

หมวดหมู่: Differential Pressure, Flow Meter, Orifice Plate

แบรนด์: EMCO

Overview

Design

Installation
Before installation, the orifice plate must be kept clean and protected against corrosion and physical damage. It is also important that you pay careful attention to to the sharp edge of the plate. Once ensured that it is clean, install the orifice plate carefully such that the orifice bore aligns with the centre of the pipeline. Tap location varies depending on whether it is used for liquid, gas or steam. It is not supplied with any safety devices and must not be used for higher pressure, than stated on the name plate. The pipe system must therefore be equipped with a safety device. However, this type of primary element requires no special maintenance.

Features

Predictable pressure loss
Simple construction
Proven design
Cost-effective

Specifications

Construction



Design and calculation standards	ISO 5167-2, ASME MFC-3M, DIN 19215, Shell Flow Meter Engineering Handbook, AGA no. 3
Sizes	2″ – 40″, DN 50 – 1000
Plate thickness	10 mm
Vent or drain hole	On request
Material	Carbon steel P235GH, AISI 316, 16Mo3, 13CrMo4-5, 10CrMo9-10, WB 36, X20CrMoV121, other materials on request
Mounting style	Weld ends according to DIN 2559 or ANSI B16.25
Pressure taps	Ø 21.3 mm, 24 mm, 26.9 mm, ½” BSP male, ½” NPT male
Tap length	150 mm, others on request.
Tap location	Tap location for steam flow: 180°. At least 45° apart for liquid and gas. To be stated with order

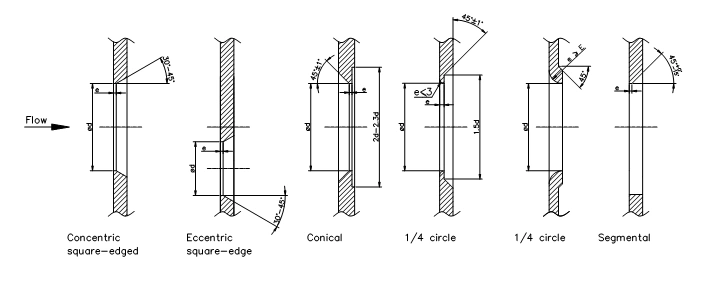

Orifice plate shapes	Square edge concentric, square edge eccentric, conical, 1/4 circle, segment. The plate is bevelled on the down stream side except for 1/4 circle orifice plate
