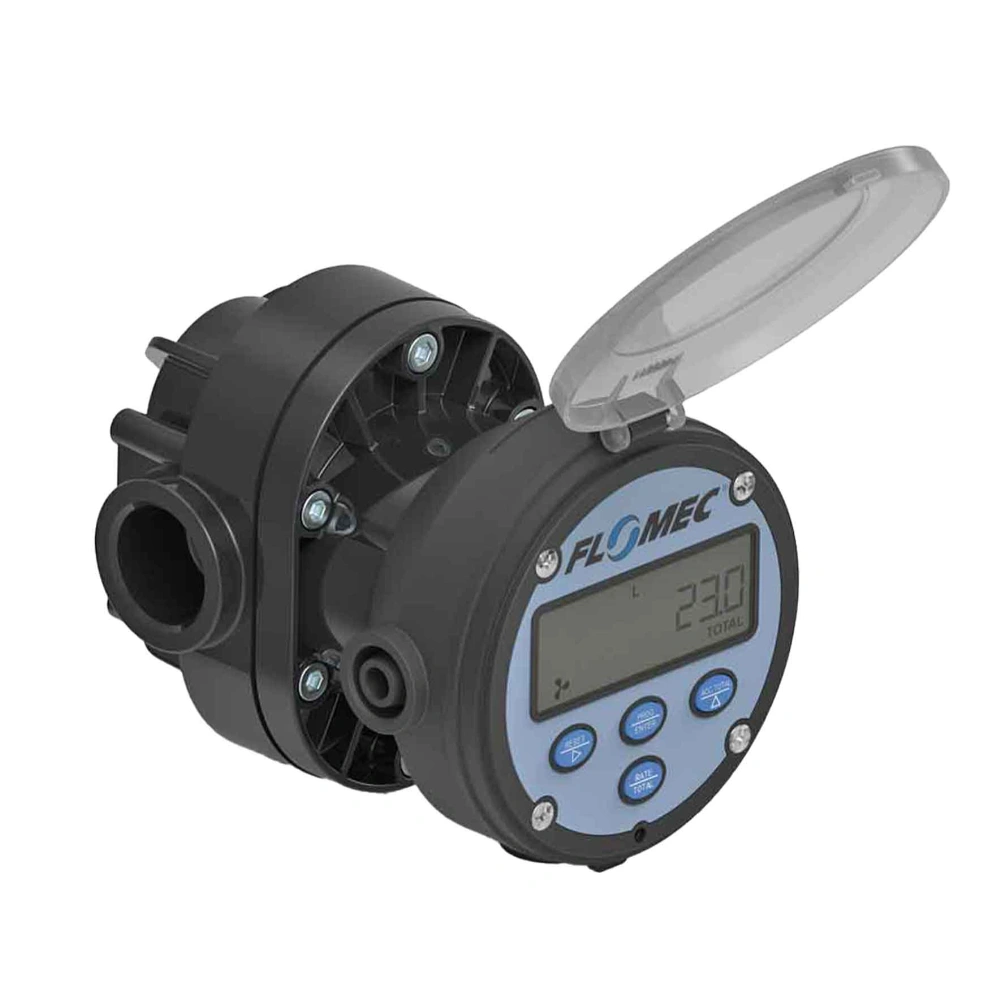

OM025P001-PPS (70PSI)

• Meter Body Size: 1″
• Local/Remote Display: Local
• Display Type: Digital LCD (GRN Housing)
• Flow Meter Type: OM Series – OVAL GEAR
• Std Calibration Reports Included: Yes
• Warranty Period: 1 Year
• Product Type: Rate, Totals & 4-20mA Output
• Benefits & Features: Excellent for applications with fluctuating or multiple viscosities – No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; Bi-directional; PPS Rotors are immune to galling (adhesive wear); PPS Rotors produce less noise than metal rotors; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Choice of Gallons or Liters; Custom Programmable Display (including UOM); Back-lighted Display when powered externally

–

• Applications (always check Chemical Compatibility Guide): Metering clean fluids such as water based liquids, including water based acids, bases or neutral salts and most fuels, fuel oils and lubricating liquids. Resistant to chemical attack from all non-aromatic (containing benzene), non-halogenated (containing halogens such as chlorine, bromine) organic solvents at any concentration. Suited for heated water, sea water, water with <1% chlorine up to 176°F.
• Not Suitable For Applications: Dirty liquids, strong oxidizing acids, strong bases at high temperatures, oxidizing chemicals in high concentrations, Hydrogen Peroxide, Chlorine and Sodium Hypochlorite
• Minimum Straight Pipe Dia.s: None
• Desired Straight Pipe Dia.s: None
• Application Notes: The meter may be mounted horizontally or vertically but must be mounted, so the rotor shafts are in a horizontal plane (see manual), For viscous liquids, the maximum allowable flow may need to be reduced to ensure the pressure drop across the meter does NOT exceed 15 PSI, Viscosities <3cps, min. flow range is 10% of the maximum flow range, Line must be full (no air) for proper accuracy

• Max Pressure Drop (at Max Flow in test conditions): Contact us
• Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5% (±0.2% Opt’l) @ 3cp
• Repeatability (based on test conditions): ± 0.03%
• Maximum Viscosity: 1,000 cps
• Recommended Strainer Size: 100 Mesh (150 Microns)
• Max. Particle Size: .006″ / .149 mm
• Operating Temp Without Local Computer or With Remote Computer: 5 to 176°F (-15 to 80°C) [Opt’l]
