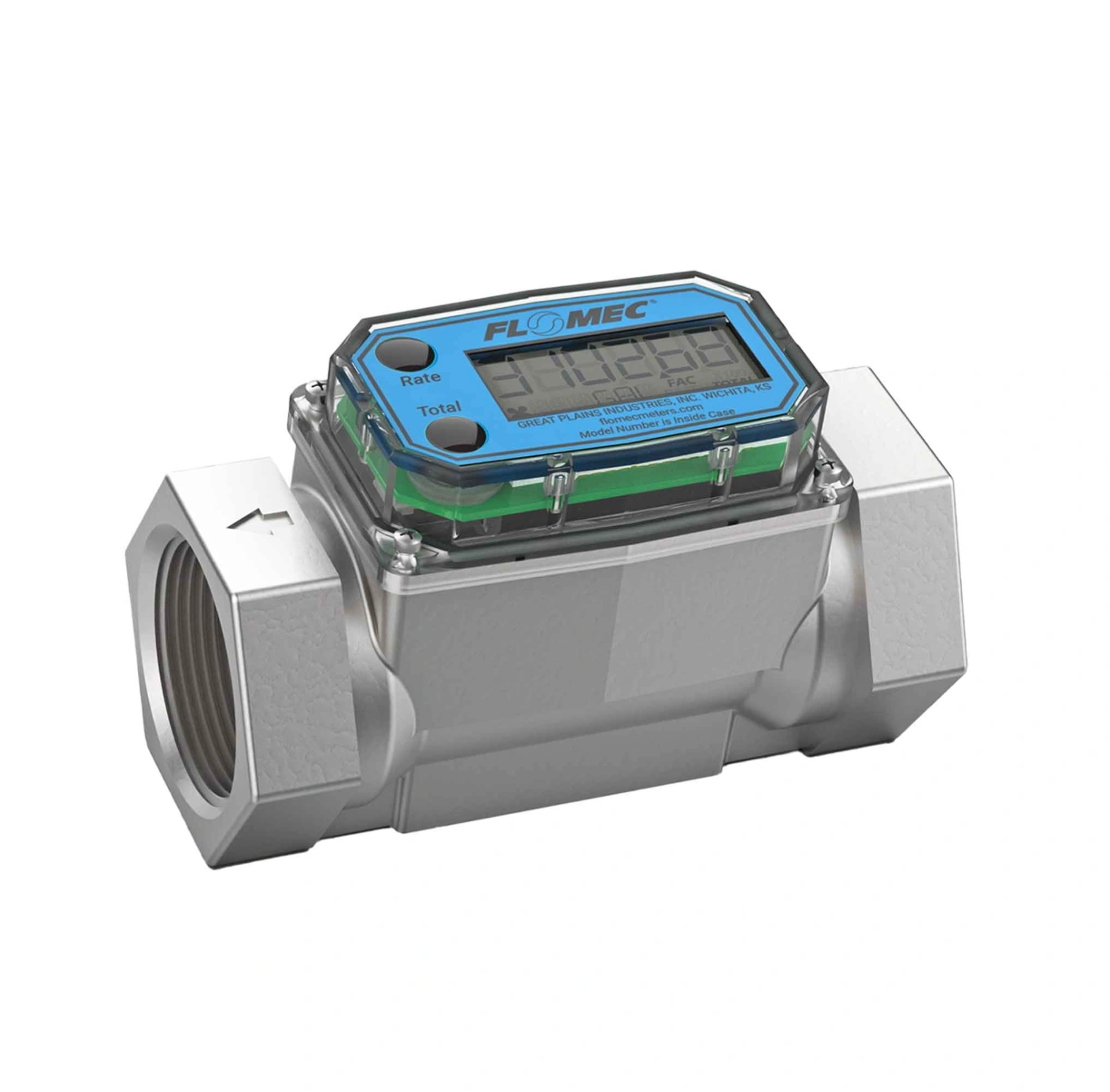

G2S15NQ9GMB (1-1/2″)

• Meter Body Size: 1-1/2″
• Local/Remote Display: Local
• Display Type: Digital LCD
• Factory Calibrated For: Water like fluids
• Flow Meter Type: G2 Series – INDUSTRIAL GRADE METER
• Std Calibration Reports Included: Yes
• Warranty Period: 1 Year
• Product Type: Rate & Totals
• Benefits & Features: Pressure Rated to 1500 PSI; Excellent Chemical Compatibility; Accurate; Durable; 2-Year Battery Powered; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Replaceable Internal Meter Body Parts; Choice of Gallons or Liters; Custom Programmable Display (including UOM)

–

• Applications (always check Chemical Compatibility Guide): Water, Chemicals, Fuel Products
• Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
• Minimum Straight Pipe Dia.s: 15″ Upstream / 7.5″ Downstream
• Desired Straight Pipe Dia.s: 30″ Upstream / 15″ Downstream
• Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line should be kept full (no air) for proper accuracy
• Piping Notes: If cavitation affects accuracy, try a flow control valve downstream of meter

• Max Pressure Drop (at Max Flow in test conditions): 3.8 PSI
• Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.75%
• Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.0%
• Repeatability (based on test conditions): ± 0.1%
• Recommended Strainer Size: 35 Mesh (500 Microns)
• Max. Particle Size: .018″ / .457 mm
• Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt’l]
• Extended Flow Range: 100 – 150 GPM (380 – 568 LPM)<br>[Accuracy of the extended flow range declines and is not guaranteed]<br>Overranging damages meter and voids warranty
• Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
