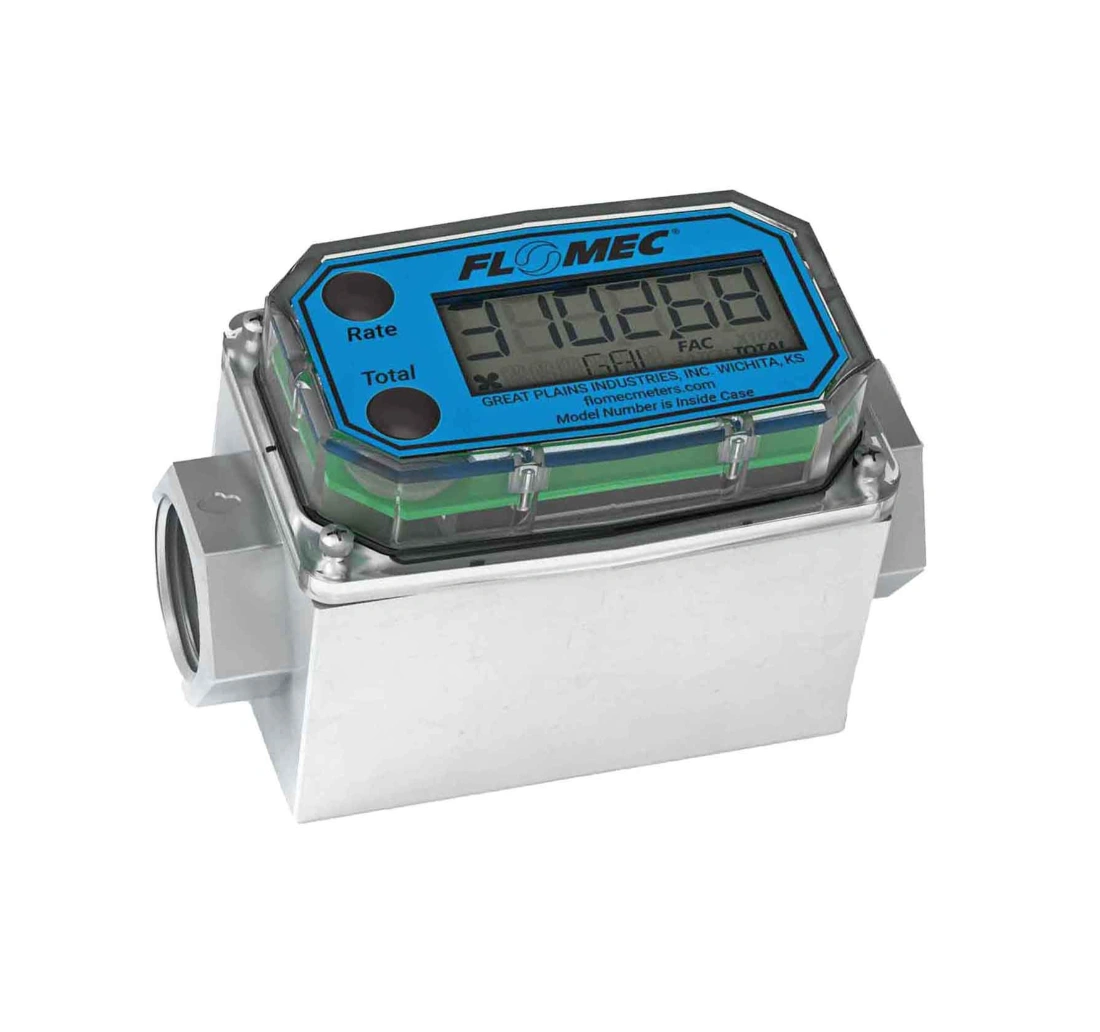

G2A07NQ9GMA (3/4″)

• Meter Body Size: 3/4″
• Local/Remote Display: Local
• Display Type: Digital LCD
• Factory Calibrated For: Water like fluids
• Flow Meter Type: G2 Series – INDUSTRIAL GRADE METER
• Std Calibration Reports Included: Yes
• Warranty Period: 1 Year
• Product Type: Rate & Totals
• Benefits & Features: Accurate; Durable; 2-Year Battery Powered; 6 Digit Display – Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Replaceable Internal Meter Body Parts; Choice of Gallons or Liters; Custom Programmable Display (including UOM)

–

• Applications (always check Chemical Compatibility Guide): Fuel, Diesel, Petroleum Based Products
• Not Suitable For Applications: Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
• Minimum Straight Pipe Dia.s: 7.5″ Upstream / 3.75″ Downstream
• Desired Straight Pipe Dia.s: 14″ Upstream / 7.5″ Downstream
• Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line should be kept full (no air) for proper accuracy
• Piping Notes: If cavitation affects accuracy, try a flow control valve downstream of meter

• Housing Material: Aluminum
• Bearings: 96% Alumina Ceramic/Tungsten Carbide
• Shaft: Tungsten Carbide
• Rotor: PVDF
• Signal Generator: Not Wetted
• Retaining Rings: 316SS
